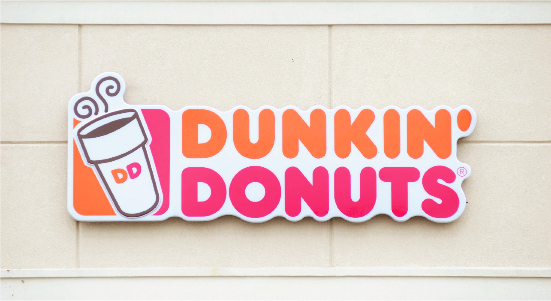

Channel Letters are 3 Dimensional Sign Elements. They are typically displayed on the facade of a building or monument sign. Channel letters are lit with LED modules which have effective light output and require very little electricity. Displaying channel letters is an intelligent way to showcase your brand in front of your customers.
Ready-to-install:
Wiring diagrams and installation pattern are included
(Installation accessories excluded)
Certified:
UL Listed with Sign Section Labels for Outdoor Installation
5 Year Warranty
Buying Options
Front Lit
Front and Back Lit
Channel Letter Front & Back Lit is fabricated with a Clear Lexan Backboard that allows the light to illuminate the front and the back of your channel letter giving it a more Lively appearance.
Components
Click to see details.
Trim Cap +
Trim Caps are plastic molding that surrounds the acrylic face of your channel letter.
Specification
3/4" or 1" Jewelite Trim Caps
Return +
Returns are the sides bordering the channel letter.
Specification
3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Returns

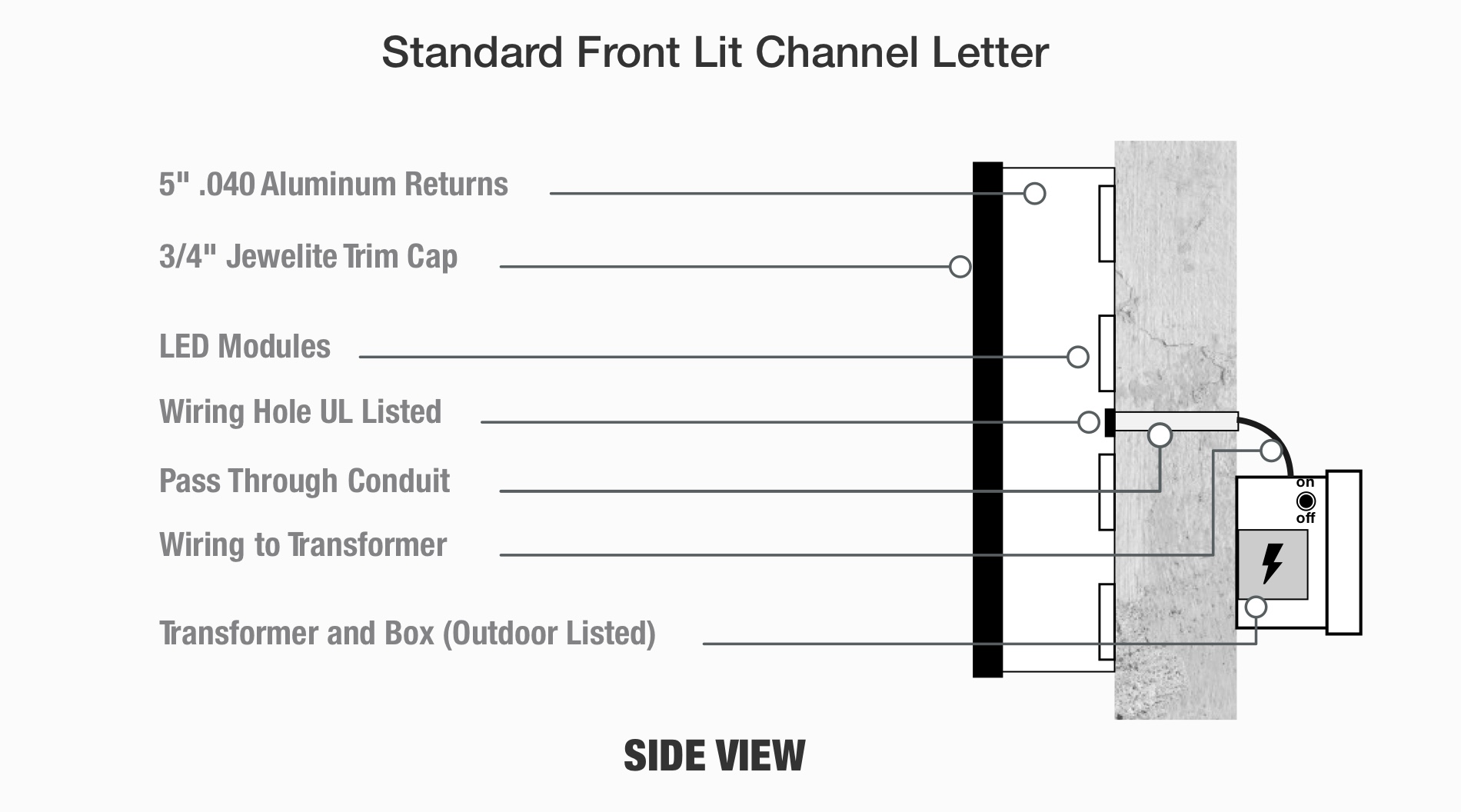

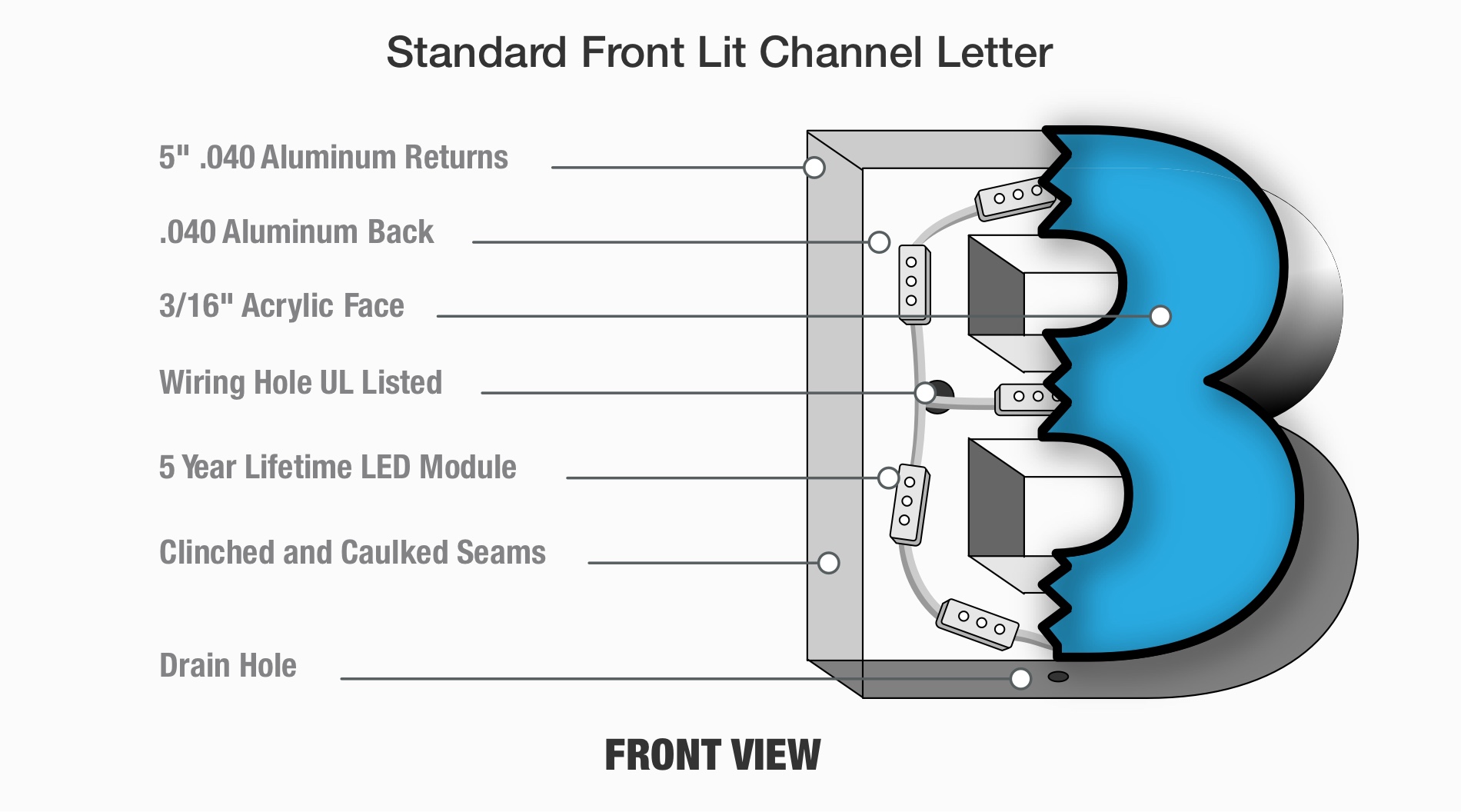

– 3/4" or 1" Trim Cap
– 3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Return and Backing
– 3/16 Acrylic Face
– LED Lights
– 3' Power cord for ground and power.
– Installation Guide and Mounting Pattern
Standard Front/Back Lit +
Our standard Front/Back lit channel letters include:
– 3/4" or 1" Trim Cap
– 3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Return
– 1/8" Palsun Clear Lexan Backs
– 3/16 Acrylic Face
– LED Lights
– 3' Power cord for ground and power.
– Installation Guide and Mounting Pattern
LED Lights +
Specification
Mynice High Efficiency, 160° Beam, IP67, 9000K-10500K, 0.7W & 1.2W LED Module (5 Year Warranty)
Power Transformer +
Specification
Mean Well HLG-80H-12 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
Westrim Transformer Boxes (4"x5"x14" for 1 transformer and 4"x9"x14" for 2 transformers)
Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)
Material Options
Warranty +
B2 Sign warrants that Front Lit Letters, Front & Back Lit Letters, Front Lit Logo Shapes Sign,
and Front & Back Lit Logo Shapes Sign will be free from defects in materials and workmanship
for a period of five (5) years from the date of shipment. Should there be a malfunction covered
under this warranty, the buyer must notify B2 Sign prior to taking any action. To proceed with
any work or repairs on signs under warranty without notifying B2 Sign automatically voids any
warranty.
If the product proves defective during the warranty period, B2 Sign, at its option, will:
(1) Repair the product, at no charge for parts or telephone/email support
(2) Replace the product with an equivalent product which may be new or refurbished
B2 Sign tests and inspects all signs for proper operation prior to shipment. In addition, all signs
are shipped in packaging that meets or exceeds industry standards for common carrier
shipment. Therefore, it is the responsibility of the party receiving the shipment to inspect the
packaging for any damage prior to accepting shipment. If packaging is damaged – inspect all
contents for damages before signing. In the event that shipping damage is determined, it is the
responsibility of the customer receiving the shipment to file a claim with the carrier and notify by
email ChannelLetters@b2sign.com or call 1 (888) 739-8501 Any damages incurred between
shipment from our plant and final destination will not be the responsibility of B2 Sign, but will fall
on the carrier.
This warranty does not apply to damages resulting from acts of God, accidental negligence,
vandalism or misuse. These warranties shall not apply to any defect, failure or damage caused
by improper use, installation or care. B2 Sign shall not be obligated under this warranty.
The above warranties are given by B2 Sign with respect to this product and its related items in
lieu of any other warranties, express or implied. It is the responsibility of B2 Sign to repair
defective products and related items as the sole remedy provided to the customer for honor of
this warranty.
FAQ
Q: How long is the turnaround for my Channel Letter order?
A: For standard channel letters and shapes between 16" to 24", orders will be completed within 6-10 business days. If vinyl is needed or your letters oversize this may extend your turnaround time.
Q: Do you have a price break down for different components and options?
A: Yes. The price sheet reflects automated quote calculated by the system.
Please Note:
Area(s) of your Text or Logos that are too small to be fabricated properly with Aluminum Returns may need to be altered before beginning production. This may incur additional charges and cause a delay on your completion time.
Q: What are the minimum and maximum production limit, cutout, stroke, spacing?
A: Shaped channel letter or light box: 58.5"x 136"
Square or rectangle light box: 48" x 72", 36" x 96", 12" x 136", 24" x 136", 30" x 136"
Rounded light box: 48" x 48"
Oval light box: 48" x 72", 36" x 96", 12" x 136", 24" x 136", 30" x 136".
Smallest stroke should be no less than 2".
Please Note:
Area(s) of your Text or Logos that are too small to be fabricated properly with Aluminum Returns may need to be altered before beginning production. This may incur additional charges and cause a delay on your completion time.
Q: What kind of art files should I submit?
A: All files submitted must be Vector and scaled to your specifications.
The shape of the channel letter should also be simplified before uploading.
Avoid uploading complex lettering or shapes.
Convert all colors to CMYK for better color output.
Please Note:
B2sign does not guarantee color matching.
Q: Do you have any fastener suggestions?
A: Yes. This information is included with your installation guide along with your Channel letter order.
Q: Do you also have optional parts for installation?
A: Yes.
Optional 3-Wire, 16G, 8-Foot, 3 Outlets, 120V Flat Plug Extension Cord can be ordered.
